    WWSC Anti Slip IP68 Axle Weighing Scales For Large Vehicles

    Ask Lasest Price
    Brand Name : Diniargeo
    Model Number : WWSC
    Payment Terms : T/T
    Supply Ability : 100+pc+3m
    Delivery Time : 8-10week
    Certification : CE
    • Product Details
    • Company Profile

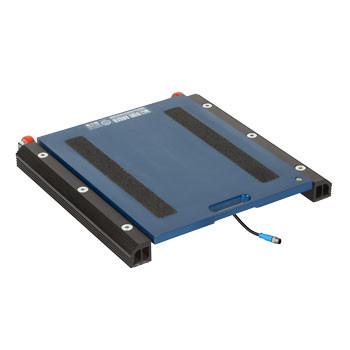

    WWSC Anti Slip IP68 Axle Weighing Scales For Large Vehicles

    "WWSC" Axle Weighing Scales WHEEL WEIGHING Scale Portable axle weight scale
    Pads designed for creating weighing stations for large vehicles (vans, trucks, tankers, tractor-trailers, etc.); particularly accurate and sturdy, with attention to details.
    FEATURES
    Pad dimensions: 500x511mm. Height 58mm. Weight approximately 19,5kg.
    Loading surface: 500x400mm.
    Very handy. Sturdy structure, made in special alluminum, which guarantees lightness and makes these suitable also for harsh working conditions.
    Cable with quick connector, pad side.
    10 m cable for connecting pad to indicator, complete of connector.
    IP68 stainless steel load cells.
    Hermetic junction box with IP68 protection degree.
    Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
    Extremely simple and reliable connection of the scale to the weight indicator.
    The WWS pads are patented; the number is 1.342.302.
    Availables in legal for trade approved version.
    Availables in high resolution version.
    Availables upon price estimate in Atex version for 1&21 e 2&22 zones.
    NOTES ABOUT THE LEGAL FOR TRADE APPROVED VERSIONS

    The pads are for legal for trade use:
    - In the single-pad systems, not used to weigh vehicles.
    - In the wheel weighing systems in which the number of pads is equal to the number of vehicle wheels.
    - In the axle weighing systems composed of one or more multiples of WWS pads, except possible limitations of use for some European States.
    The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade pad of the system.
    Legal for trade systems with more than one WWS, are fitted with the approval of the weight sum and related division:
    Exemple for a 4 pads system
    Single CE-M Pad: Max=1500kg and e=0,5kg
    CE-M SUM: Max=6000kg and e=2kg
    Axle Weighing Scales Available versions

    Code
    l x w x h
    (mm)
    Max
    (kg)
    d
    (kg)

    (kg)
    d HR
    (kg)*
    WWSC1.5T-1500x400x5815000,50,50,05
    WWSC3T-1500x400x583000110,1
    WWSC6T-1500x400x586000220,2
    WWSC10T-1500x400x5810000550,5
    WWSC15T-1500x400x5815000 (12500**)550,5
