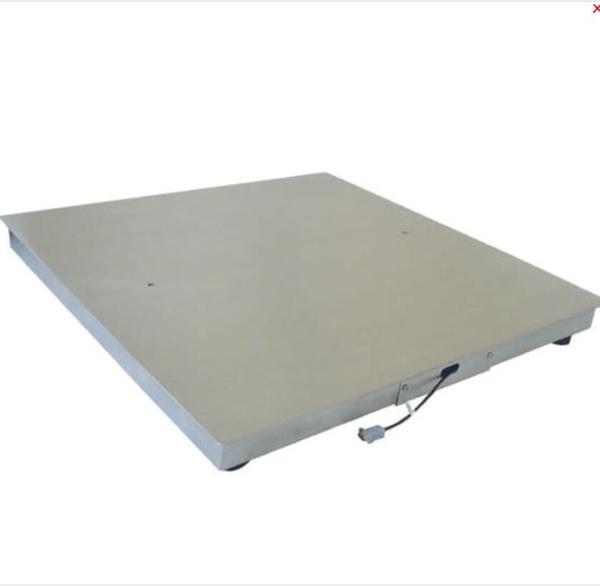

CHPS-2T Floor Weighing Scale single-layer stainless steel platform
scale Single stainless steel floor scale
The single-layer stainless steel electronic platform scale's
reliable and hard quality is derived from unparalleled high-quality
steel, which can meet a variety of complex and harsh industrial
occasions. All components have undergone rigorous manufacturing and
inspection before leaving the factory to ensure that each component
is of consistently high quality, thereby ensuring stable and
reliable measurement accuracy and measurement repeatability. This
series of electronic platform scales can be used for weighing in a
variety of occasions, and are widely used in logistics centers,
chemical, pharmaceutical and other industrial occasions. This
department has a reasonable structural design, high rigidity, high
strength and longer life. This series of electronic platform scales
include various specifications, various capacities and various
options to meet different application needs.
Technical parameters of single-layer stainless steel platform
scale:
Accuracy class: III
Stainless steel meter: LED or LCD with backlight display
Working temperature: -15 ℃ ~ + 50 ℃
Power supply: AC 110 ~ 220V 50 ~ 60Hz or DC4 ~ 6V 4Ah
Structural features of single-layer stainless steel platform scale
Brand-new structural design, increased rigidity, enhanced strength
and extended life
Material: 304 stainless steel
Stainless steel surface: polished, brushed
Sensors: Four all stainless steel sealed sensors, protection class
IP68
Junction box: All stainless steel housing, protection grade is
IP68, greatly reducing data drift caused by humidity
Product features of single layer stainless steel platform scale:
Waterproof, anticorrosive, dustproof, anti-interference
Zeroing, tare, accumulation, weighing, counting, checkweighing,
sorting
Printing, communication interface RS232 / 485 (optional)
4 ~ 20mA analog output (optional)
Relay output, switching value control (optional)
single-layer stainless steel platform scale:
| Configuration | The standard configuration | Optional |
| Scale body | 304 stainless steel | Stainless steel |
| lode cell | stainless steel | explosion-proof |
| Junction Box | Stainless steel | explosion-proof |
| indicator | XK3190-A12ESS | Print / Explosion / Counter / Large screen |
| annex | / | Leading slope / instrument column / moving mechanism |
Single-layer stainless steel electronic platform scale product
specifications:
| product name | Single stainless steel floor scale |
| Product number | CHPS |
| Weighing platform height | 10cm |
| Table size | 0.8×0.8M,1.0×1.0M,1.0×1.2M,1.2×1.2M,1.2×1.5M 1.5×1.5M,1.5×2.0M,2.0×2.0M,2.0×3.0M,2.5×3.0M Note: Any non-standard size can be customized according to your
requirements |
| Maximum weighing | 600kg | 1000kg | 2,000kg | 3,000kg | 5000kg |
| Accuracy | 0.2kg | 0.5kg | 0.5kg | 0.5kg | 1kg |
We specialize in the development of industrial scales. CONHON has
mature weighing design and production experience, and has
professional weighing and research personnel to provide
high-quality non-standard weighing equipment design services and
comprehensive weighing control system solutions. Make your
company's weighing application double the number of performances on
the basis of lower operating costs, increase production efficiency,
and maximize profits. Welcome to start your relaxing and enjoyable
app journey!
