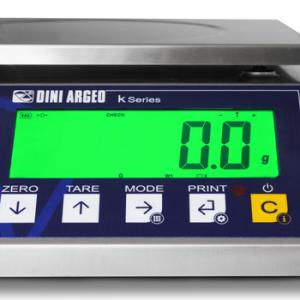

"KSD" series stainless steel digital scale with touch screen
High-precision electronic platform scale Electronic table s
These bench digital scales are characterized by a solid and
versatile stainless steel body with a large plate.
The new multifunctional programme allows the operator to choose the
desired mode to carry out checks, piece-counting, percentage
weighing and totalisation.
The long lasting battery power supply and the lateral handles allow
an easy transport of the scale directly where it is necessary.
DIGITAL SCALES: TECHNICAL FEATURES
STAINLESS steel digital scales body, resistant and easy to clean.
Stainless steel load plate, inspectionable and easily cleanable.
Dimensions 250x340mm.
Alluminium load cells.
40mm LCD display, with different backlight colors.
Waterproof keyboard and multifunctional programme.
IP44 protection.
Non-slip adjustable feet.
Ergonomic lateral handle.
Level positioned under the plate.
Serial port RS232 for connection to Pc or printer.
Digital scale power supply: internal rechargeable battery
(operating time 40h aproximately) or external power supply/battery
charger.
DIGITAL SCALES: MAIN CERTIFICATIONS
KSD scales certificates are:
- EU Type Examination Certificate (45501:2015)
- OIML R76
I/O SECTION
Bidirectional port RS232/C, programmable for connection to
printer/labeller, or for printer attached to the indicator.
Bidirectional port RS232/C (RS485 optional) programmable for PC,
PLC, additional remote display or radio modem. RJ connector for
rapid linkage.
SELECTABLE FUNCTIONING MODE
Through the specific key, it is possible to choose the desired
functioning mode:
SELECTABLE FUNCTIONS:
- High resolution visualization x 10.
- Precision weighing by standard weight (for internal use).
- Net/Gross, or lb/kg conversion.
- Weight totalization.
- Formulation.
- +/- check
- Percentage weigh.
- Approved weight transmission to PC/PLC or printer.
- Piece counting.
- Hold
OTHER STANDARD FUNCTIONS:
Zeroing, Tare, Preset tare, Automatic tare, Auto switch-off.
Available versions
|
Code | Max
(kg) | d
(g) |
2R (g)* |
| KSD6C6 | 3/6 | 0.5/1 | 0.5/1 |
| KSD6 | 3/6 | 1/2 | 1/2 |
| KSD15 | 6/15 | 2/5 | 2/5 |
| KSD30 | 15/30 | 5/10 | 5/10 |
