CHT-II U Shape Scale Weighing bar scale Carbon steel bar scale
Electronic scales for bar scales
The Weighing bar scale is a newly designed platform scale structure. It is a weighing
system composed of 2 weighing bars (each weighing bar is equipped
with 2 shear beam load cells) and a dedicated weighing instrument.
; After the simple transformation of the two weighing bars, a
variety of weighing systems can be formed, which is very convenient
to apply to the needs of various industries and weighing.
Technical parameters of strip Weighing bar scale :
Accuracy grade: Ⅲ
Working temperature: -10 ~ + 40 ℃
Power supply: AC110 ~ 220v50 ~ 60Hz or DC 6v4Ah
Structural characteristics of Weighing bar scale :
Two weighing blocks, using high-quality carbon steel
Each weighing bar is equipped with handles and wheels for easy
movement;
Carbon steel surface is shot-blasted and plastic-treated, with good
anti-corrosion performance;
Stainless steel surface polishing and drawing;
Four shear beam alloy steel sensors and special large feet;
Product Features of Bar Electronic Platform Scale:
Zero, Tare, Accumulate
Weighing, counting, checkweighing, sorting
Printing and communication interface RS232 / 485 (optional)
4 ~ 20mA analog output (optional)
Relay output, switch information (optional)
Weighing bar scale:
| Configuration | The standard configuration | Optional |
| Scale body | carbon steel | Stainless steel |
| lode cell | alloy steel | explosion-proof/stainless steel |
| Junction Box | Stainless steel | explosion-proof |
| indicator | XK3190-A12 | Print / Explosion / Counter / Large screen |
| annex | / | Leading slope / instrument column / moving mechanism |
Weighing bar scaleStandard sizes:
Bar s size (m×m) | capacity (t) | Division value (kg) | Countertop height | net weight (kg) |
| 0.10×0.8 | 1/2/3 | 0.5/1/1 | 100 | 24 |
| 0.10×1.0 | 1/2/3 | 0.5/1/1 | 100 | 28 |
| 0.10×1.2 | 1/2/3 | 0.5/1/1 | 100 | 32 |
| 0.10×1.5 | 1/2/3 | 0.5/1/1 | 100 | 38 |

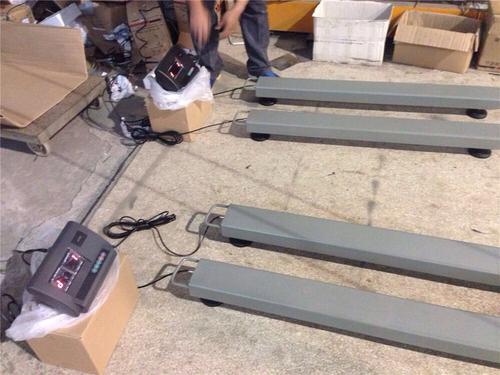

Weighing bar scale Product physical map:
We specialize in the development of industrial scales. CONHON has
mature weighing design and production experience, and has
professional weighing and research personnel to provide
high-quality non-standard weighing equipment design services and
comprehensive weighing control system solutions. Make your
company's weighing application double the number of performances on
the basis of lower operating costs, increase production efficiency,
and maximize profits. Welcome to start your relaxing and enjoyable
app journey!
