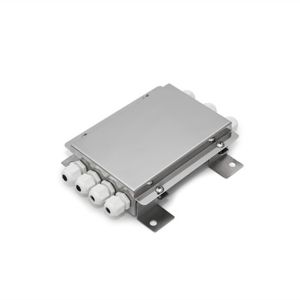

JBQI Dust Proof 4/6 Inputs Weighbridge Junction Box

"JBQI": EQUALISED JUNCTION BOX WITH 4/6 INPUTS, IN IP65 STAINLESS STEEL

Stainless steel junction box with IP65 protection from water and dust, and fitted with electronic board for junction and equalisation of 4 or 6 load cells. Terminal board with screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.

TECHNICAL FEATURES

Stainless steel case.
Protection degree: IP65.
Maximum input voltage: 24Vdc.
Maximum input current: 700mA.
Maximum input load cell signal: 1000mV.
Temperature effect: 50ppm/°C.
Protection diodes against surcharges or electrostatic discharges.
4 cell inputs on screw connector or on soldering squares (for JB4QI model).
6 cell inputs on screw connector or on soldering squares (for JB6QI model).
Dimensions: 155x158x45mm (lxwxh) for JB4QI
Dimensions: 190x132x50mm (lxwxh) for JB6QI

Available versions

	Code	Description
	JB4QI	Stainless steel equalisation box for connection with up to 4 load cells. IP65 protection degree, with 4 + 1 fairleads.
	JB6QI	Stainless steel equalisation box for up to 6 load cells. IP65 protection degree, with 6 + 1 fairleads.

Similar solutions for ATEX environnements

	Code	Description
	JB4A	Junction box for up to 4 cells for hazardous areas ATEX, in ABS IP67, with 4 + 1 fairleads for connection with up to 4 load cells. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT).
	JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Protection rates: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Provided with manual and ATEX CE DECLARATIONS OF CONFORMITY (available in EN, DE, FR and IT).
	JB4AI	Stainless steel IP66, ATEX, juntion box for up to 4 cells. 4 + 1 fairleads. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT).
	JB4QAI	ATEX equalisation box made of STAINLESS steel IP66 for up to 4 cells. 4 + 1 fairleads. Protection rates: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Provided with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT).
