CHCO9 Threaded Post Spoke Type 5kg Pull Force Sensor

    Buy cheap CHCO9 Threaded Post Spoke Type 5kg Pull Force Sensor from wholesalers

    Buy cheap CHCO9 Threaded Post Spoke Type 5kg Pull Force Sensor from wholesalers
    • Buy cheap CHCO9 Threaded Post Spoke Type 5kg Pull Force Sensor from wholesalers
    • Buy cheap CHCO9 Threaded Post Spoke Type 5kg Pull Force Sensor from wholesalers

    CHCO9 Threaded Post Spoke Type 5kg Pull Force Sensor

    Ask Lasest Price
    Brand Name : CONHON
    Model Number : CHCO9
    Certification : CE
    Price : ¥800-10000/pcs
    Payment Terms : T/T
    Supply Ability : 99999+pc+1m
    • Product Details
    • Company Profile

    CHCO9 Threaded Post Spoke Type 5kg Pull Force Sensor

    pressure Load Cells sensor 5-300kg up and down threaded post sensor spoke type pull pressure sensor

    Features:


    high-quality alloy steel material; easy, fast, stable and reliable installation; suitable for material testing machines, batching scales, mechanical and electrical scales and packaging scales
    Product brand: Changheng Electronic CHCO9 load cell
    Product model: CHCO9 load cell, Changheng CONHON CHCO9 load cell
    Product Price: Online Inquiry
    Changheng Electronics CHCO9 Main Features
    ● S-type
    Load Cells sensor
    ● CE certified products
    ● High-quality alloy steel material Optional stainless steel material
    ● Easy and fast installation, stable and reliable
    ● Suitable for material testing machines, batching scales, electromechanical combined scales and packaging scales, etc.

    Product parameters:

    5,10,20,30,100,200,300(kg)

    Rated Output
    2.0mV/V ±10%
    Zero Balance
    ±3% of rated output
    Creep after 30 minutes
    ±0.03% of rated output
    Nonlinearity
    ±0.03% of rated output
    Hysteresis
    ±0.03% of rated output
    Repeatability
    ±0.03% of rated output
    Temp. effect on output
    ≤0.002% of applied output/ºC
    Temp. effect on zero
    ≤0.002% of rated output/ºC
    Safe Temp. Range
    -10ºC to + 70ºC
    Temp. Compensated
    -10ºC to + 40ºC
    Safe Overload
    150%
    Input Impedance
    410 ohm ± 20 ohm
    Output Impedance
    350 ohm ± 5 ohm
    Insulation Resistance
    ≥5000 M ohm (50V DC)
    Rated Excitation
    10V DC/AC
    Maximum Excitation
    15V DC/AC
    Cable Length
    13cm/35cm/275cm
    Cable Color Code
    Red(+E) Black(-E) Green(RXD) White(TXD)

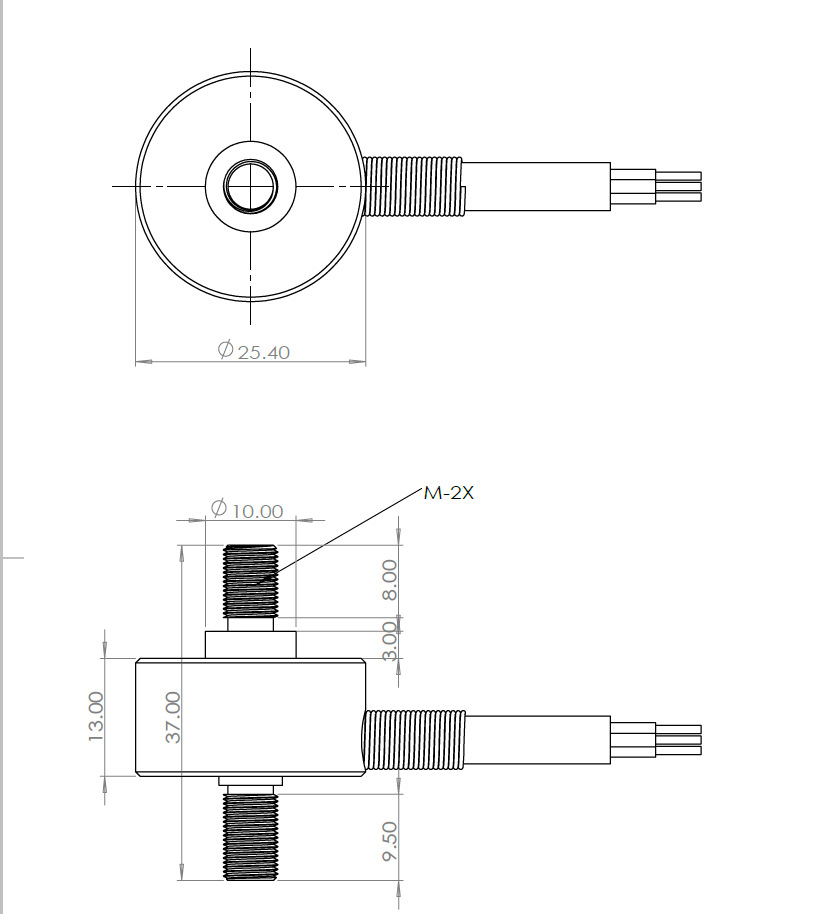

    Product Size:


    undefined
