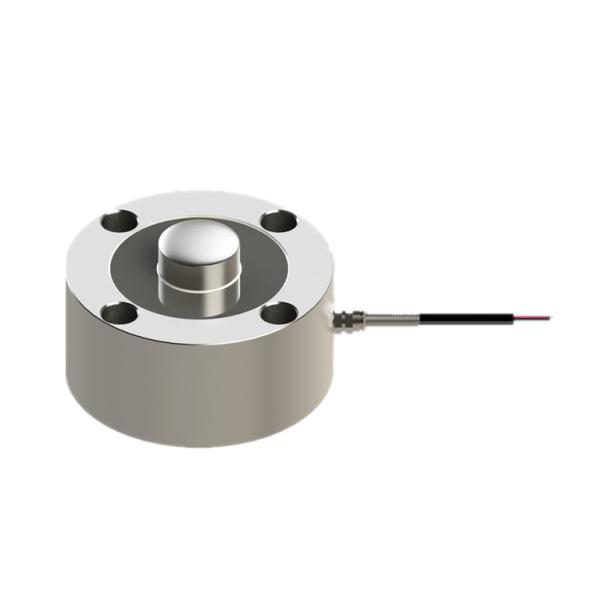

    CHCLF Aluminum Alloy Spoke Pressure Conhon Load Cells

    Ask Lasest Price
    Brand Name : CONHON
    Model Number : CHCLF
    Certification : CE
    Price : ￥800-10000/pcs
    Payment Terms : T/T
    Supply Ability : 99999+pc+1m
    • Product Details
    • Company Profile

    CHCLF Aluminum Alloy Spoke Pressure Conhon Load Cells

    CHCSG high-precision tension / pressure S-type Load Cells (0.5-20t)


    Product parameters:

    50/80/100/200/300/500(t)(Customizable range)

    Rated Output
    额定输出
    2.0mV/V ±10%
    Zero Balance
    零点平衡
    ±3% of rated output
    Creep after 30 minutes
    蠕变
    ±0.03% of rated output
    Nonlinearity
    非线性
    ±0.03% of rated output
    Hysteresis
    滞后
    ±0.03% of rated output
    Repeatability
    重复性
    ±0.03% of rated output
    Temp. effect on output
    灵敏度温漂
    ≤0.002% of applied output/ºC
    Temp. effect on zero
    零点温漂
    ≤0.002% of rated output/ºC
    Safe Temp. Range
    可用温度范围
    -10ºC to + 70ºC
    Temp. Compensated
    温度补偿范围
    -10ºC to + 40ºC
    Safe Overload
    安全载荷
    150%
    Input Impedance
    输入阻抗
    410 ohm ± 20 ohm
    Output Impedance
    输出阻抗
    350 ohm ± 5 ohm
    Insulation Resistance
    绝缘阻抗
    ≥5000 M ohm (50V DC)
    Rated Excitation
    推荐激励电压
    10V DC/AC
    Maximum Excitation
    最大激励电压
    15V DC/AC
    Cable Length
    导线长度
    13cm/35cm/275cm
    Cable Color Code
    导线颜色
    Red(+E) Black(-E) Green(+S) White(-S)

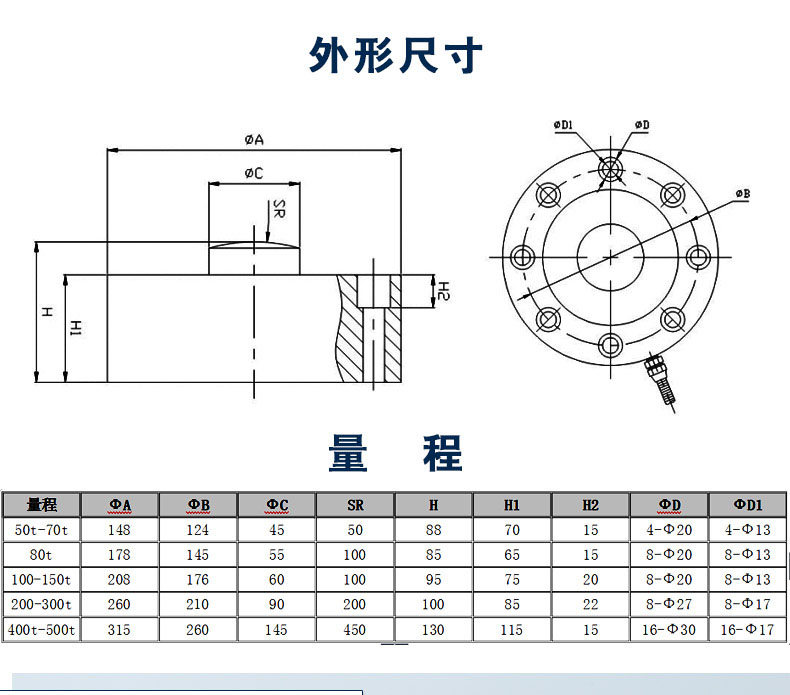

    Product Size:



    此图纸是常用规格50T的量程



    Product Tags:

    500t precision load cell



    500t s type load cell



    500t s beam load cell
