Narrow Space Testing Miniature 2.0mv/V Force Load Cell

    Buy cheap Narrow Space Testing Miniature 2.0mv/V Force Load Cell from wholesalers

    Buy cheap Narrow Space Testing Miniature 2.0mv/V Force Load Cell from wholesalers
    • Buy cheap Narrow Space Testing Miniature 2.0mv/V Force Load Cell from wholesalers

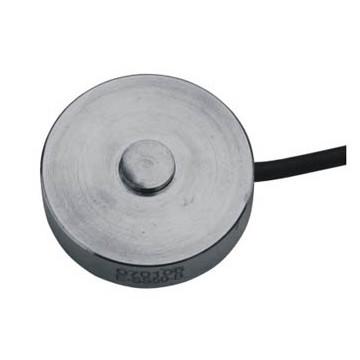

    Narrow Space Testing Miniature 2.0mv/V Force Load Cell

    Ask Lasest Price
    Brand Name : CONHON/KELI
    Model Number : NKE series
    Certification : -
    Price : Online consultation
    Payment Terms : T/T
    Supply Ability : 100000+pc+one week
    Delivery Time : one week
    • Product Details
    • Company Profile

    Narrow Space Testing Miniature 2.0mv/V Force Load Cell

    Narrow space testing force load cell Coin load cell Miniature load cell NKE Series Load Cell NKE-1klb Load Cell

    weighing load cell Product Details

    Narrow space testing force load cell FEATURES:

    Capacity 200lb to 10klb

    Low profile, small apperance

    Stainless steel


    Coin load cell APPLICATION:

    Narrow space testing

    Miniature load cell Product Dimensions

    NKE Series Load Cell SPECIFICATION:


    Rated capacity: 200lb to 10klbOperating temperature range: -30 to +70
    Rated output:1.0~2.0mv/vMaximum safe overload120% OF R.C
    Combined error:±0.5% F.SUltimate safe overload150% OF R.C
    Non-repeatability:±0.05% F.SRecommended Excitation5 to 10V DC
    Non-linearity:±0.5% F.SMaximum Excitation10V DC
    Hysteresis error:±0.5% F.SEnvironment protection: IP66
    Zero balance: ±2% F.SInput impedance: 350±50Ω
    Creep error(30minutes): ±0.2% F.SOutput impedance: 352±3Ω
    Temperature effect on zero: ±0.051% F.SInsulation resistance at 50V DC: ≥2000MΩ
    Temperature effect on output: ±0.2% F.SMaterial: Stainless steel
    Compensated temperature range: -10 to +40Cable length: 1.5 meter, diameter 3mm

    We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
